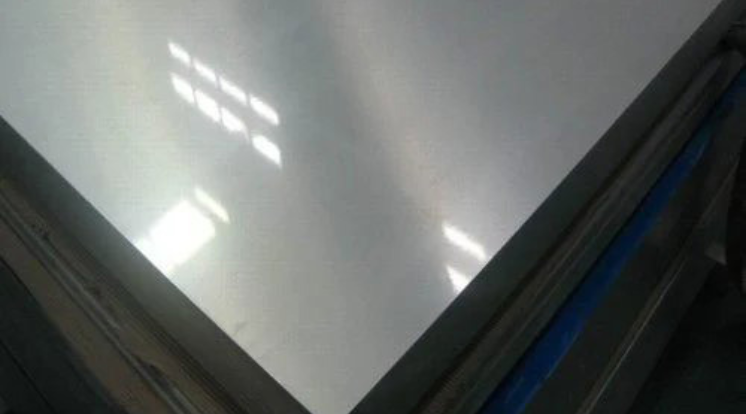

Aluminium 8011 Sheet / Plate

Max Pipes and Fittings Inc. proudly offers a wide range of Aluminium 8011 Sheets & Plates. Our products are available in multiple forms, including sheets, plates, foils, blocks, angles, flanges, and other industrial profiles. These Aluminium 8011 sheets and plates are known for their excellent corrosion resistance, good formability, and lightweight strength, making them ideal for applications in packaging, automotive, and construction industries. Sourced from certified and trusted manufacturers, our Aluminium 8011 products comply with strict industrial standards and quality norms. Available in custom thicknesses and dimensions, they cater to diverse requirements while ensuring consistent quality and superior dimensional accuracy.

Features:

Excellent corrosion resistance, ideal for outdoor and marine environments
Lightweight and durable, making it suitable for roofing, siding, and general fabrication
Good formability and bendability, allowing easy cutting, shaping, and rolling
Non-heat-treatable alloy with consistent mechanical properties for reliable performance
Smooth surface finish suitable for painting, coating, or anodizing

Sheet & Plates Specifications

Standards : ASTM B209 / ASME SB209
Thickness :0.2 mm – 50 mm
Width : 100 mm – 2600 mm
Length : 500 mm – 10000 mm
Finish : Mill Finish, or Customer-Specific Finish
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheets
Temper :O, H12, H14, H16, H18, H22, H24
Surface : Bright, Polished, Hairline, Brush, Sand Blast, Embossed, Etching

KEY FEATURES

Excellent formability, superior corrosion resistance, high barrier protection, good strength, suitable for deep drawing, lightweight, recyclable, food-safe.

PRODUCT RANGE

8011 sheet available in O/H14/H18/H22/H24 tempers.

GLOBAL EQUIVALENTS

AA8011 (USA), ASTM B209/B479/B921 8011, UNS A98011, EN AW-8011 (Europe), EN 573-3, EN 485, ISO AlFeSi (8011), GB/T 3198 8011 (China), JIS H4000 8011 (Japan), KS D6701 8011 (Korea), TSE EN 8011 (Turkey), SANS EN 8011 (South Africa), IS 15392 (India – Aluminium & Aluminium Alloy Foil), IS 19000 (India – Sheets/Strips), IS 737 (India – Chemical Composition), Hindalco 8011, Jindal 8011, GCC 8011 equivalents (UAE, Oman, Saudi).

TEMPER LIST

8011-O, 8011-H14, 8011-H18, 8011-H22, 8011-H24, 8011-H26, 8011-H19, 8011-H30, 8011-H32, 8011-H34

INDUSTRY APPLICATIONS

Packaging foil, household foil, pharmaceutical blister foil, heat exchanger fins, cable wrap, insulation foil, container foil, food-grade packaging, bottle caps, industrial coils, automotive heat shields.

BUYER KEYWORDS

8011 sheet dealer, 8011 sheet distributor, buy 8011 sheet, 8011 foil importer, pharma foil supplier, 8011 coil stockist.

LOCATION KEYWORDS

8011 sheet Mumbai, 8011 sheet Pune, 8011 sheet Delhi, 8011 sheet Chennai, 8011 sheet Bengaluru, 8011 sheet Hyderabad, 8011 sheet Ahmedabad, 8011 sheet Surat, 8011 sheet Dubai, 8011 sheet Abu Dhabi, 8011 sheet Doha, 8011 sheet Riyadh, 8011 sheet Muscat

Aluminium 8011 Sheet & Plate – Equivalent Grades

European Standard	BS (OLD)	USA (AA)	Germany (DIN)	ISO	IS	Canadian
EN AW-8011	—	8011	AlMn1 (DIN 3.3545)	AlMn1	IS 737 – 8011	8011

Chemical Composition of Aluminium Alloy 8011 Sheets & Plates

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Each	Al
8011 (min)	0.5	0.1	—	0.3	—	—	—	0.15	—	Remainder
8011 (max)	1.0	0.25	—	0.7	0.15	0.2	0.2	0.25	0.05	Remainder

Mechanical Properties of Aluminium Alloy 8011 Sheets & Plates

Alloy	Temper	UTS (MPa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm – 0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
8011	O	70	110	20	22	24
	H14	120	150	12	14	16
	H24	145	170	10	12	14

Physical Properties of Aluminium 8011 Sheets & Plates

Properties	Metric
Density	2.68 Mg/m³
Melting Point	585°C – 650°C
Specific Heat (100°C)	880 J/kg·K
