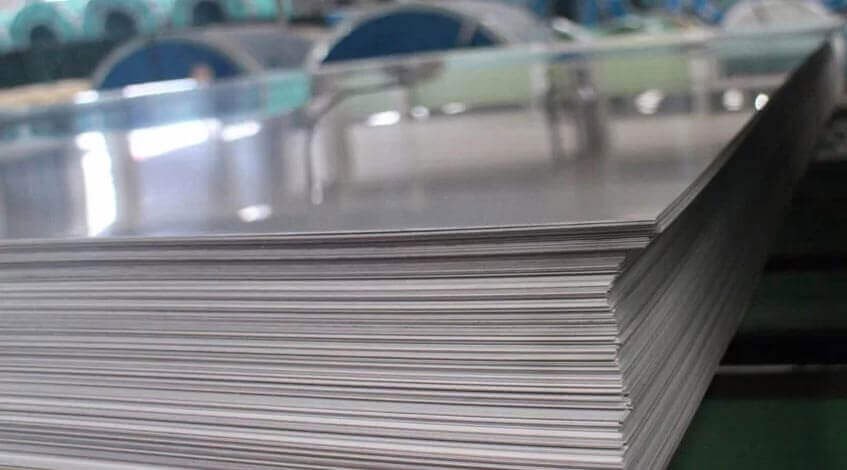

Max Pipes and Fittings Inc. is one of the most reliable and trustworthy manufacturers of
Aluminium 2014 Sheets. The company operates globally as a manufacturer, supplier, stockist, and
exporter of a comprehensive range of aluminium sheets.
Grade 2014A is a high-strength aluminium alloy that retains its strength after heat treatment.
It contains 4–5% copper and is supplied in a fully heat-treated condition (solution heat-treated
and artificially aged). Typical applications of aluminium alloy 2014A include high-strength
components used in the aerospace and defence industries. It offers good machinability and
hardness, but it is not suitable for welding and is prone to stress-corrosion cracking.
| European Standard | BS (OLD) | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) | IS | Canadian |
|---|---|---|---|---|---|---|---|---|
| EN AW-2014 | HE15 | 3.1255 | A92014 | AlCu4SiMg | 2014 | AlCuSiMn | 24345 | B26S |
| 1050 | 1060 | 1070 | 1100 | 2014 |
| 2017 | 2024 | 3003 | 5005 | 5052 |
| 5754 | 5083 | 5086 | 6061 | 6082 |
| 7050 | 7075 |
| Chemical Element | % Present |
|---|---|
| Silicon (Si) | 0.50 – 0.90 |
| Iron (Fe) | 0.0 – 0.50 |
| Copper (Cu) | 3.90 – 5.00 |
| Zinc (Zn) | 0.0 – 0.25 |
| Manganese (Mn) | 0.40 – 1.20 |
| Magnesium (Mg) | 0.20 – 0.80 |
| Titanium (Ti) | 0.0 – 0.15 |
| Others (Total) | 0.0 – 0.15 |
| Chromium (Cr) | 0.0 – 0.10 |
| Nickel (Ni) | 0.0 – 0.10 |
| Other (Each) | 0.0 – 0.05 |
| Titanium + Zirconium (Ti+Zr) | 0.0 – 0.20 |
| Aluminium (Al) | Balance |
| Mechanical Property | Value |
|---|---|
| Tensile Strength | 440 Min MPa |
| Proof Stress | 390 Min MPa |
| Hardness Brinell | 133 HB |
| Physical Property | Value |
|---|---|
| Density | 2.82 g/cm³ |
| Modulus of Elasticity | 71 GPa |
| Electrical Resistivity | 0.045 x10^-6 Ω .m |
| Thermal Conductivity | 138 W/m.K |
| Thermal Expansion | 23 x10^-6 /K |
| Melting Point | 535 °C |
