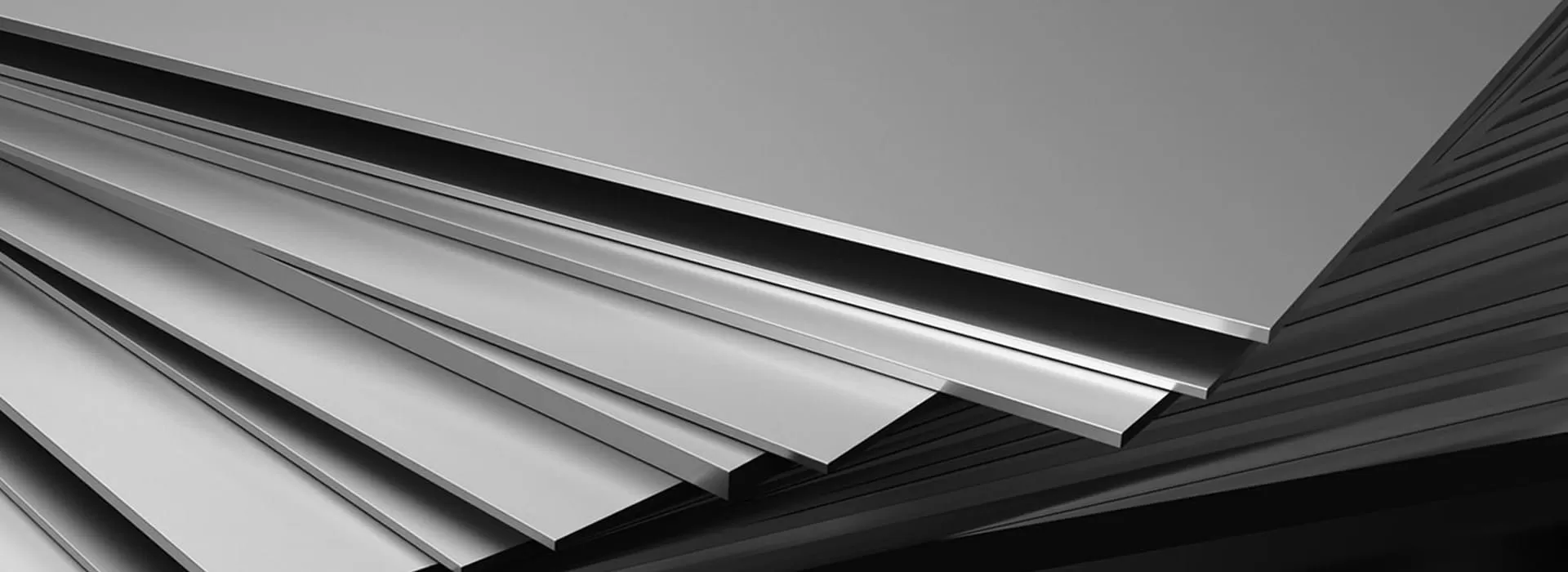

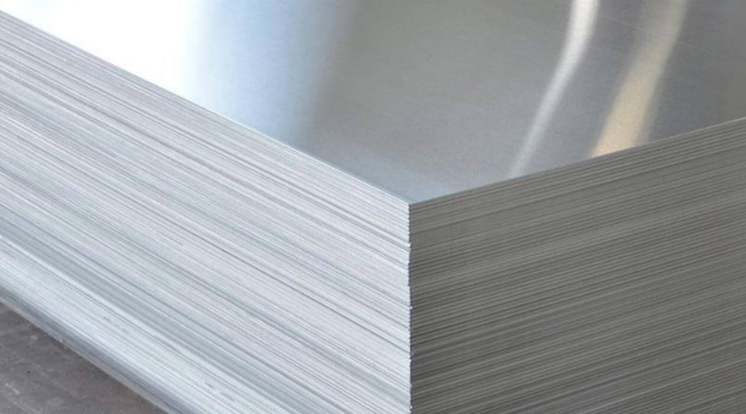

Aluminium 2024 Sheet & Plates

Aluminum that is pure is very soft and extremely ductile. To improve the mechanical characteristics of the metal, it is alloyed to yield better results. For instance, the 2024 Aluminum Plate consists chemically of copper, with copper being its primary alloying element after aluminum. Aluminum 2024 (2024A) is one of the most well-known high-strength aluminum alloys when it is in the heat-treated condition. Due to 2024 (2024A)'s high strength and excellent fatigue resistance, it is commonly used in structures and components in the aircraft and transportation industries.

Sheet & Plates Specifications

Standards : ASTM B209 / ASME SB209
Thickness : 0.2-50
Width : 100-2600
Length : 500-10000
Finish : Mill, Customer Specific Finish
Type : Hot-Rolled (HR) / Cold-Rolled (CR) Sheet
Temper : O,H12,H14,H16,H18,H19,H22,H24
Surface : Bright, polished, hair line, brush, sand blast, embossed, etching

Aluminium 2024 Sheets Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlCu4MgSi	AU4G	3.1325	A92024	AlCu4Mg1	2024	AlCuMg2

OUR SPECIAL GRADES

1050	1060	1070	1100	2014
2017	2024	3003	5005	5052
5754	5083	5086	6061	6082
7050	7075

Chemical Composition Of Aluminium Alloy 2024 Sheets & Plates :

Weight (%)	Al	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Other
min.	Bal			3.80	0.30	1.20
max.	Bal	0.50	0.50	4.90	0.90	1.80	0.10	0.25	0.15	0.05

Mechanical Properties Of Aluminium Alloy 2024 Sheets & Plates

Temper	Tensile Strength	Yield Strength	Elongation
	KSI	KSI	%
(annealed)	32	14	12
T3	63	42	15
