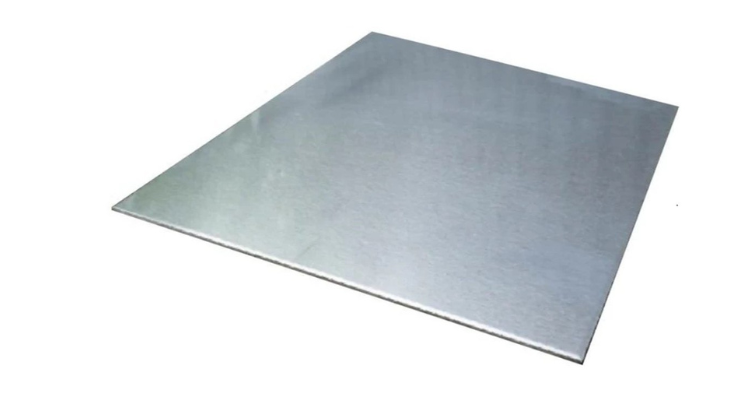

Max Pipes and Fittings Inc. is proud to offer a comprehensive range of Aluminium Sheets & Plates manufactured from Aluminium Alloy 2007. Our products are available in various forms including hexagonal, wires, rectangular sheets, flanges, valves, couplings, nipples, blocks, and angles. These sheets and plates are renowned for their **high strength, excellent machinability, and reliable performance** in precision engineering applications. Our Aluminium 2007 Sheets & Plates are sourced from certified and trusted manufacturers who adhere to strict industrial standards and quality norms. They are available in custom thicknesses and dimensions, catering to diverse **aerospace, automotive, and mechanical engineering** requirements, ensuring consistent quality and superior dimensional accuracy.
High tensile strength, excellent machinability, superior chip forming characteristics, fatigue resistant alloy structure, heat treatable performance, exceptional dimensional stability, good finishing response (polishing, anodizing, brushing, coating), consistent hardness distribution, excellent surface integrity for CNC machining and precision milled components.
| European Standard | BS (OLD) | USA (AA) | Germany (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-2007 | HE30 | 2007 | AlCu4 (DIN 3.1255) | AlCu4 | IS 737 – 2007 | 2007 |
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Each | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 2007 (min) | — | — | 0.20 | 0.40 | 3.0 | 0.25 | — | 0.18 | — | Remainder |
| 2007 (max) | 0.7 | 0.5 | 0.5 | 0.7 | 4.0 | 0.25 | 0.2 | 0.25 | 0.05 | Remainder |
| Alloy | Temper | UTS (MPa) | % Elongation | |||
| Min | Max | 0.5 mm – 0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 2007 | O | 175 | 220 | 10 | 12 | 14 |
| T4 | 300 | 350 | 8 | 10 | 12 | |
| T6 | 390 | 440 | 6 | 8 | 10 | |
| Properties | Metric |
|---|---|
| Density | 2.80 Mg/m³ |
| Melting Point | 500°C – 635°C |
| Specific Heat (100°C) | 880 J/kg·K |
