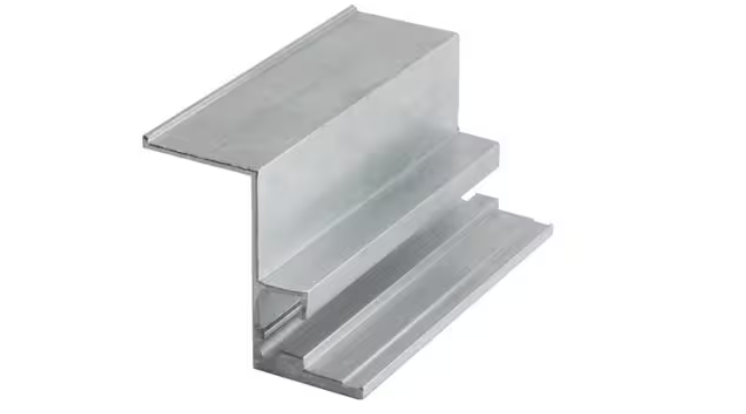

Aluminium 6082 Channels

Aluminium 6082 Channels are manufactured from Aluminium Alloy 6082, a heat-treatable aluminum–magnesium–silicon alloy widely recognized for its high mechanical strength, excellent corrosion resistance, and superior durability. This alloy is ideal for structural, industrial, and transportation applications, providing long service life, dimensional stability, and reliability under load-bearing conditions. Aluminium 6082 Channels offer excellent machinability, weldability, and formability, allowing efficient fabrication through bending, cutting, drilling, rolling, and welding processes. Being a heat-treatable alloy, 6082 can achieve high strength levels through solution heat treatment and aging, delivering stable mechanical performance with a smooth, high-quality surface finish. Aluminium 6082 Channels are commonly supplied in T4, T5, T6, and T651 tempers, ensuring consistent dimensional accuracy and reliable performance across industrial, structural, and commercial applications. Aluminium 6082 Channels are widely used in structural frameworks, bridges, transportation equipment, machinery components, offshore and marine structures, and general fabrication works. Their combination of high strength, excellent corrosion resistance, lightweight nature, and good weldability makes them particularly suitable for load-bearing, outdoor, and industrial applications. We supply Aluminium 6082 Channels in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional accuracy, consistent quality, and compliance with international standards for structural, industrial, and commercial channel applications.

Aluminium Alloy 6082 Channels Specification

Standards : ASTM B221, ASTM B209M, EN 573, EN 485
Thickness : 0.9 mm – 7 mm
Width : 10 mm to 200 mm (Custom Channel Profiles Available)
Length : : Up to 6.5 meters (Coated & Anodized), up to 5 meters (Mill Finish)
Finish : Mill Finish, Customer-Specific Finish
Type : Hot-Rolled (HR) / Cold-Rolled (CR)
Temper : T4, T5, T6, T651
Surface : Anodized, Polished, Brushed, Matte, Sand Blasted, Powder Coated, PVDF Coated

KEY FEATURES

High tensile strength, excellent corrosion resistance, superior weldability, good machinability, heat treatable, stable microstructure, ideal for load bearing structures.

PRODUCT RANGE

6082 channel in T6/T651/T4 structural grades.

GLOBAL EQUIVALENTS

AA6082 (USA), ASTM B209/B221 6082, UNS A96082, EN AW-6082, EN 573-3, EN 485 (Europe), ISO AlSi1MgMn, DIN 3.2315 / AlSi1MgMn (Germany), BS HE30 / HE20 (UK), BS EN 485, AFNOR AU4G (France), UNI 6082 (Italy), JIS H4000 A6082 (Japan), GB/T 3190 6082, LC9, A6082P (China), KS D6006 6082 (Korea), TSE EN 6082 (Turkey), SANS EN 6082 (South Africa), NMX-H 6082 (Mexico), IS 733 (India – Aluminium Bars/Rods/Profiles), IS 737 (India – Wrought Aluminium Chemical Composition), Hindalco 6082, Jindal 6082, Russian Equivalent: AD35, 6082 Russia Equivalent, GCC search equivalents: 6082 UAE grade, 6082 Oman grade, 6082 Saudi grade.

TEMPERS

6082-O, 6082-T4, 6082-T6, 6082-T651, 6082-T6511, 6082-T5, 6082-T8.

INDUSTRY APPLICATIONS

Structural engineering, cranes, bridges, towers, heavy duty frameworks, automotive chassis, truck frames, pressure vessels, machine components, CNC machining applications, architectural structures.

BUYER KEYWORDS

6082 channel dealer, 6082 channel distributor, buy 6082 channel, 6082 T6 supplier, wholesale 6082 material, bulk 6082 importer.

LOCATION KEYWORDS

6082 channel Mumbai, 6082 channel Pune, 6082 channel Delhi, 6082 channel Chennai, 6082 channel Bengaluru, 6082 channel Hyderabad, 6082 channel Ahmedabad, 6082 channel Surat, 6082 channel Dubai, 6082 channel Abu Dhabi, 6082 channel Doha, 6082 channel Riyadh, 6082 channel Muscat.

Aluminium Alloy 6082 Channel – Equivalent Grades

European Standard	BS (OLD)	USA (AA)	Germany (DIN)	ISO	IS	Canadian
EN AW-6082	—	6082	AlSi1MgMn (DIN 3.2315)	AlSi1MgMn	IS 6082 – 6082	6082

Chemical Composition Of Aluminium Alloy 6082 Channels :

Alloy	Fe	Si	Mg	Mn	Cu	Zn	Ti	Cr	Each	Al
6082 (min)	0.7	0.7	0.6	0.4	0.0	—	0.05	0.25	0.05	remainder
6082 (max)	1.0	1.3	1.2	1.0	0.3	0.2	0.1	0.5	0.05	remainder

Mechanical Properties Of Aluminium Alloy 6082 Channels :

Alloy	Temper	UTS (MPa)		% Elongation
Alloy	Temper	Min	Max	0.5 mm – 0.8 mm	0.81 mm – 1.30 mm	1.30 mm – above
6082	O	120	180	18	20	22
	T4	220	270	10	12	14
	T6	260	310	8	10	12
	T651	280	320	6	8	10

Physical Properties of Aluminium 6082 Channel

Properties	Metric
Density	2.70 Mg/m³
Melting Point	555°C – 650°C
Specific Heat (100°C)	900 J/kg·K
