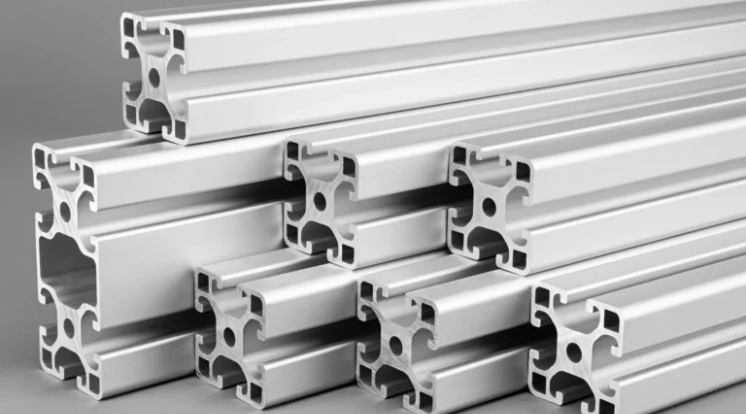

Aluminium 2024 Channels are manufactured from Aluminium Alloy 2024, a high-strength, heat-treatable aluminium-copper-magnesium alloy widely known for its outstanding strength-to-weight ratio, excellent fatigue resistance, and superior performance in high-stress structural environments. This alloy is especially suited for applications where mechanical strength, durability, and structural reliability are critical, making it a preferred choice for aerospace and heavy-duty industrial channel applications. Aluminium 2024 channels offer excellent machinability and high mechanical strength, allowing efficient fabrication through cutting, drilling, machining, and forming processes. Although corrosion resistance is moderate compared to pure aluminium alloys, it can be significantly enhanced through anodizing, cladding, or protective surface coatings. Aluminium 2024 channels are commonly supplied in T3, T4, and T6 tempers, ensuring consistent mechanical performance and dimensional stability for precision-engineered components. Aluminium 2024 channels are extensively used in aerospace structures, aircraft fittings, transportation systems, defense equipment, high-performance machinery, and load-bearing industrial frameworks. Their high fatigue strength, rigidity, and lightweight nature make them ideal for applications requiring long service life under cyclic loading conditions. We supply Aluminium 2024 channels in custom sizes, lengths, thicknesses, tempers, and surface finishes as per client specifications, ensuring precise dimensional accuracy, consistent quality, and full compliance with international standards for aerospace, industrial, and commercial channel applications.
| European Standard | BS (OLD) | USA (AA) | Germany (DIN) | ISO | IS | Canadian |
|---|---|---|---|---|---|---|
| EN AW-2024 | HE19 | 2024 | AlCu4Mg1 (DIN 3.1355) | AlCu4Mg1 | IS 737 – 2024 | 2024 |
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Each | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 2024 (min) | — | — | 1.20 | 0.30 | 3.80 | — | — | — | 0.05 | remainder |
| 2024 (max) | 0.50 | 0.50 | 1.80 | 0.90 | 4.90 | 0.25 | 0.15 | 0.10 | 0.15 | remainder |
| Alloy | Temper | UTS (MPa) | % Elongation | |||
| Min | Max | 0.5 mm – 0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||
| 2024 | O | 140 | 210 | 16 | 18 | 20 |
| T3 | 425 | 485 | 8 | 10 | 12 | |
| T4 | 440 | 490 | 10 | 12 | 14 | |
| T6 | 455 | 505 | 6 | 8 | 10 | |
| Properties | Metric |
|---|---|
| Density | 2.78 Mg/m³ |
| Melting Point | 502°C – 638°C |
| Specific Heat (100°C) | 875 J/kg·K |
| 1100 | 2014 | 2017 | 2024 | 3003 |
| 5086 | 5052 | 5754 | 5082 | 5083 |
| 6061 | 6063 | 6082 |
